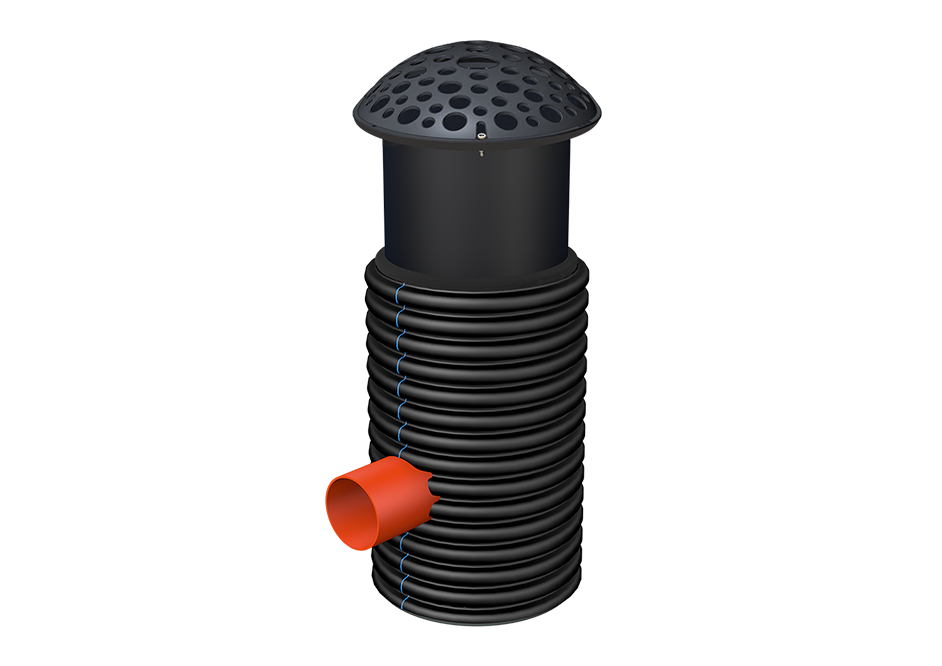

Drainage gullies DN 600.500

With telescopic pipe and dome grate cover

Connections 110, 160, 200, 250, 315, 400 mm
Drainage gullies DN 600.500


Drainage gullies with sediment trap DRC (drainage reciever chamber) with diameter of DN 600 [mm]. With telescopic pipe and dome grate cover for installation outside traffic load impact zones, for example in green areas (courtyards, parks, etc.).

  • Connections can be made at angles: 0°.. 270°
  • Connection DN/OD 110 .. 400 [mm]
  • Access hole: DN 500 [mm]
  • Sediment trap volume*: 166 [dm³]
    *by default, on request it is possible order different sediment trap volumes (or chambers without one at all)
  • Advantages

    Long service life (>50 years)

    Flexible for movements in soil (no cracking of the chamber)

    Water-tightness

    Resistant to aggressive environment, no corrosion

    The diameter of access hole allows convenient and quick CCTV control and maintenance of sewerage networks

  • Recommended application
    For construction in ditches
    (for capturing and discharging surface water)
    In agriculture, forestry, in parks, squares and peat fields
    Stadiums and sport complexes
  • Chamber components
    Drainage gullies DN 600.500

    OUT 0° DN* 110/160/200/250/315/400

    *connections in gullies from DN/OD 110 to 200 [mm] may be formed by use of coupling seal, but connections in gullies above DN/OD 200 [mm] should be formed by built-in connection cup

  • Technical information
    Installation depth:
    • Minimum instalation depth: 1.0 [m]

    • Maximum installation depth is up to 6.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 5.0 [m], according to the requirements of EN 13598-2 standard

    Chamber cover:
    • Cast iron dome grate cover with water throughput area 1025 [cm2], h = 200 [mm]

    Telescopic section:
    • Telescopic PE smooth-wall pipe DN/OD 500 [mm], height 0.75 [m], corresponds to the requirements of EN 12201-2 and EN 14802 standards

    • Rubber cuff DN 600/500 and rubber sealing ring DN 600 [mm] correspond to the requirements of EN 681-1/A3 and EN 1277 standards

    Chamber shaft and base:
    • Height-adjustment corrugated PP double-wall shaft DN/ID 600 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards

    • Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm] correspond to the requirements of EN 13476-3 standard

    How to create additional connections:


    Legend:

    1 - hole saw
    2 - chamber shaft connection seal
    3 - socket adapter/chamber connection
    4 - sealing ring

  • Downloads

    EVODRAIN Catalogue ENG

    Overview of EVOPIPES solutions for drainage and sub-irrigation water system management.

    Download
  Product Code
  Chamber covers
Dome grate cover with PE telescopic pipe DN 500 [mm], h=750 [mm] (+200 [mm] dome grate height) 820210650440000000
  Chamber covers
Dome grate cover, DN 600 [mm], h=200 [mm] 820214600SL0000000
  Telescopic pipe selection
PE smooth-wall SDR 33, DN/OD 500 [mm] telescopic pipe with adapter, height 0.75 [m] on request
  Rubber cuff
Rubber cuff DN 600/500 815208650000000000
  Shaft selection
DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=2 [m] 903060060090020
DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=3 [m] 903060060090030
  Chamber base selection
Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm], KN 815053000000000231
  Accessories


Open

Socket adapter/chamber connection accessory DN 110 [mm] 8090201100000G0200
Socket adapter/chamber connection accessory DN 160 [mm] 8090201600000G0200
Socket adapter/chamber connection accessory DN 200 [mm] 8090202000000G0200

Open
Coupling seal for GIGAPIPE  DN 110 [mm] 8092071103G0000046
Coupling seal for GIGAPIPE DN 160 [mm] 8092071606G0000046
Coupling seal for GIGAPIPE DN 200 [mm] 8092072006G0000046*
  Hole saw on request
