FM-0H-SMART PRE-WIRED H07Z1-U

Solid H07Z1-U Dca class wire

Comp. strength: 750 N/5cm, Classification: 33433
FM-0H-SMART PRE-WIRED H07Z1-U

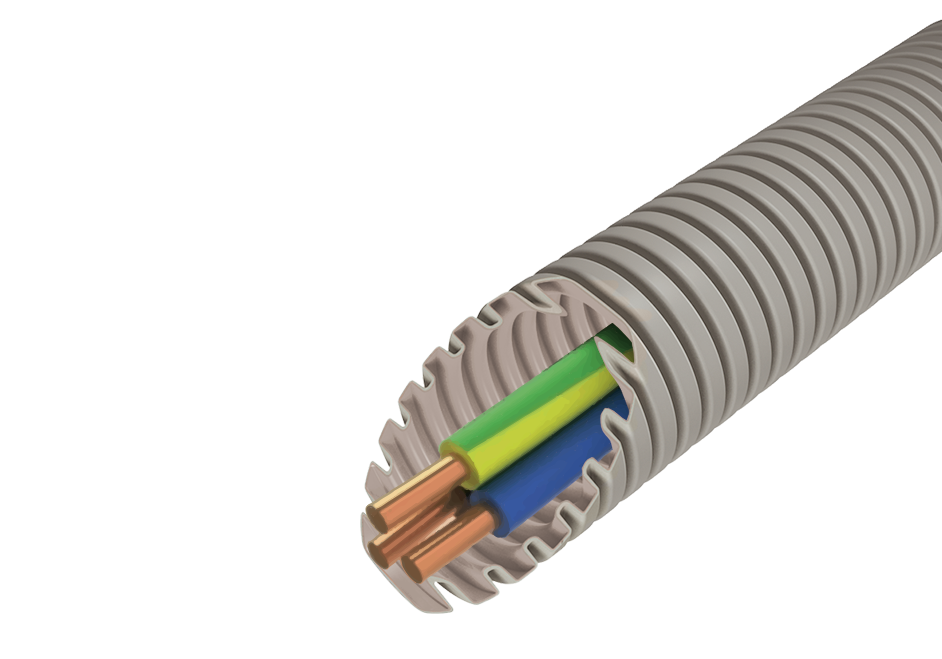

SMART PRE-WIRED are conduits with pre wired power wires. The installation of the conduits is much quicker and simpler because wires are already pre wired at the factory and do not need to be pulled on-site. This reduces the total costs of installation.

  • Available sizes: 16, 20, 25 mm
  • Available in rolls of 100 m and 50 m, depending on the diameter of the conduit. On request other packing lengths and types are available (like drums or carton boxes)


Pipe solutions to increase your efficiency and make you more competitive in installation market!

Accessories

  • Advantages
    • Time saving (no pulling of wires into conduits required)
    • Cost saving (less man-hours required for the work)
    • Halogen-free material for conduits and wires

  • Recommended application

    Due to the halogen-free material, SMART PRE-WIRED are suitable for installations in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping-centres, airports, railway terminals, office buildings. Due to the fire-safety requirements for protection against smoke, halogen-free conduits are also recommended for use in multi-apartment buildings.

    • Installation on plastering
    • In floors
    • In dry concrete
    • In keramzite concrete
  • Technical information

    Conduit specifications:

    • Material - a special plastic (halogen-free)
    • Compression strength- medium 750 N/5cm
    • Impact strength- medium
    • Temperature range from -25°C to +105°C
    • Non flame propagator, self-extinguishing
    • Corrosion-resistant.
    Pipe dimensions
    Dimensions DN 16 DN 20 DN 25
    Outer Ø [mm] 16 20 25
    Inner Ø [mm] 11.1 14.5 18.4
    Bend radius ≥ [mm] 70 90 110

    R- Bend radius
    D- Bend diameter

    Cable CPR classification (reaction to fire)
    Aca
    B1ca
    B2ca
    Cca
    Dca
    Eca
    Fca
    No reaction Very low reaction
    Non flame propagator
    Non fire propagator
    Very low heat emission
    Low reaction
    Non flame propagator
    Non fire propagator
    Low heat emission
    Reduced reaction
    Non flame propagator
    Non fire propagator
    Reduced heat emission
    Improved reaction
    Non flame propagator
    Improved heat emission
    Basic reaction
    Non flame propagator
    Undetermined
    The SMART conduits are manufactured in compliance with standards:
    • EN 61386-22
    • EN60754-1:2015
    • EN60754-2:2015
    • EN 61034-2
    • EN 60332-1-2
    • EN 60332-1-3
  • Wire datasheet

    EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

    Certificate of conformity (Bureau Veritas)

    Download
    EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

    Solid H07Z1-U TDS ENG

    Wire technical datasheet

    Download
    Solid H07Z1-U TDS ENG
  • Downloads

    EVOEL Catalogue ENG

    Plastic conduits for electrical installations

    Download

    EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

    Certificate of conformity (Bureau Veritas)

    Download
Code DN/OD Wires [mm²] Length [m] Package¹ [m]
Solid wire² Prysmian Draka H07Z1-U CPR Class Dca
1151201610WS3150HG 16 3G 1,5 100 2400
1151201610WS3250HG 16 3G 2,5 100 2400
1151201610WS5150HG 16 5G 1,5 100 2400
On request 16 5G 2,5 100 2400
1151202005WS5250HG 20 5G 2,5 100 1200
1151202510WS5250HG 25 5G 2,5 50 1200

package¹ - other packing types and coils lengths on palets available on request
solid wire² - prewired conduits with solid halogen free wires (other wires available on request)

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
