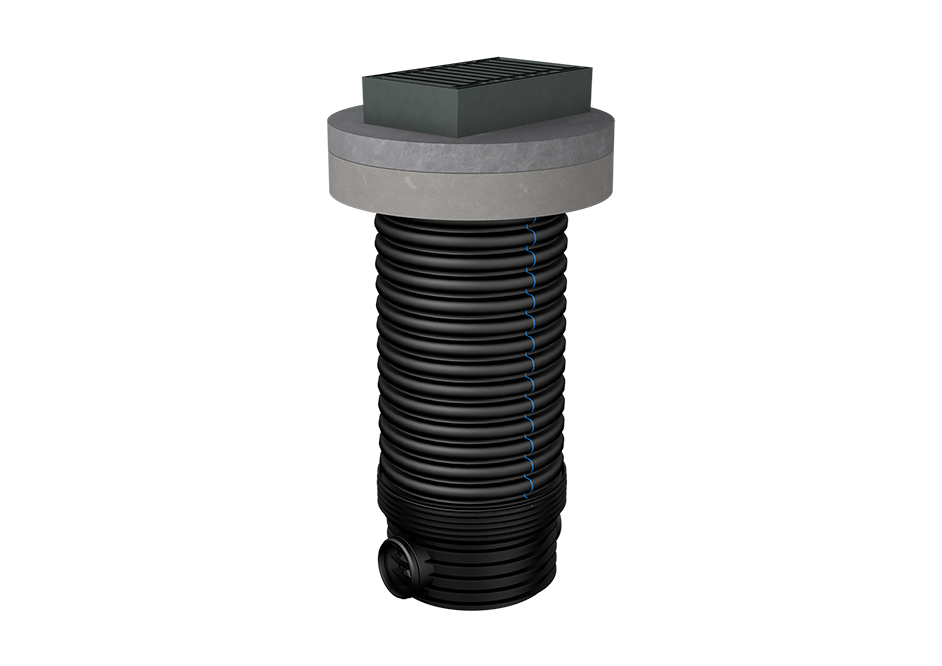

Gullies DN 600 with square grate

With corrugated pipe shaft

Connections DN/OD 110, 160, 200, 250, 315, 400 mm
Gullies DN 600 with square grate


Gullies DN/ID 600 [mm] with or without sediment trap and D400 class cast iron cover for construction alongside road curb.

  • Connection DN/OD 110 .. 400 [mm]
  • Cover: D400 class (40t), RAL GZ-692
  • Sediment trap volume*: 166 [dm³]
    *by default, on request it is possible order different sediment trap volumes (or chambers without one at all)
  • Advantages

    Long service life (>50 years)

    Flexible for movements in soil (no cracking of the chamber)

    Water-tightness > 0.5 bar, watertight materials

    Resistant to aggressive environment, no corrosion

    The diameter of access hole allows convenient and quick maintenance of sewerage networks

  • Recommended application
    Yards of multi-storey dwellings
    Parking places and vehicle storage areas
    Pavements, pedestrian and bicycle paths
    Stadiums and sport complexes
    Road construction (with and without transport load)
  • Chamber components
    Gullies DN 600 with square grate
    Type With sediment trap Without sediment trap
    Connections OUT 0° OUT 0°
    DN/OD [mm] 110/ 160 / 200 / 250 / 315 / 400* 160 / 200 / 250 / 315*

    *connections in gullies from DN/OD 110 to 200 mm may be formed by use of coupling seal, but connections in gullies above DN/OD 200 mm should be formed by built-in connection cup

  • Technical information
    Installation depth:
    • Minimum instalation depth: 1.0 [m]

    • Maximum installation depth is up to 6.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 5.0 [m], according to the requirements of EN 13598-2 standard

    Chamber cover:
    • Stationary type cast iron square frame and grate, 500x300 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard

    • Stationary type cast iron square frame and grate, 500x500 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard

    • Polyethylene (PE) debris bucket, h=260 [mm], type DIN 4052 - B1

    • Reinforced concrete support ring, DN 360/975 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard

    • Reinforced concrete support ring, DN 715/975 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard

    Chamber shaft and base:
    • Height-adjustment corrugated PP double-wall shaft DN/ID 600 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards

    • Sealing ring DN 600 [mm] correspond to the requirements of EN 681-1/A3 and EN 1277 standards

    • Base of chamber CSL DN 600 [mm] PP correspond to the requirements of EN 13598-2 and EN 476

    • Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm] correspond to the requirements of EN 13476-3 standard

    Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)

  • Downloads

    RIGID MULTI & MONO Catalogue ENG

    Gravity sewer systems for utility sewage and rainwater

    Download

    EVOSAN, EVOSAN RF and EVORAIN Catalogue ENG

    EVOSAN rain and waste water system catalogue

    Download
  Product Code
  Chamber covers
Rectangle chamber cover (frame with grate), cast iron, 500x300 [mm] 820212174ST730006A
Square chamber cover (frame with grate), cast iron, 500x500 [mm] 820212175ST730007A
Square chamber cover (frame with grate), cast iron, 500x500 [mm] on request
  Debris bucket selection
Debris bucket, polyethylene (PE) 8150994500077000DS
  Concrete components
Reinforced conrete support ring, DN 360/975 [mm], h=160 [mm] 821072360850000000
Reinforced conrete support ring, DN 715/975 [mm], h= 120 [mm] 8210727038G0000000
  Shaft selection
DN/ID 600 [mm] PP corrugated height-adjustment shaft 30500I0608003FT80B5
DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=2 [m] 903060060090020
DN/ID 600 [mm] PP corrugated height-adjustment shaft without connections and with welded on base, h=3 [m] 903060060090030
  Sealing ring selection

Open
Sealing ring for GIGAPIPE pipe DN 600 [mm] 809025600000000096
  Chamber base selection
Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm], KN 815053000000000231
PP base of chamber CSL, DN 600, with one connection 0° DN 160 [mm] 815041160O3000W230
PP base of chamber CSL, DN 600, with one connection 0° DN 200 [mm] 815041200O6000W230
PP base of chamber CSL, DN 600, with one connection 0° DN 250 [mm] 8150412503O000W230
PP base of chamber CSL, DN 600, with one connection 0° DN 315 [mm] 81504131540000W230
  Accessories


Open

Socket adapter/chamber connection accessory DN 110 [mm] 8090201100000G0200
Socket adapter/chamber connection accessory DN 160 [mm] 8090201600000G0200
Socket adapter/chamber connection accessory DN 200 [mm] 8090202000000G0200

Open
Coupling seal for GIGAPIPE  DN 110 [mm] 8092071103G0000046
Coupling seal for GIGAPIPE DN 160 [mm] 8092071606G0000046
Coupling seal for GIGAPIPE DN 200 [mm] 8092072006G0000046
  Hole saw on request

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
