CID 400
Drainage inspection chamber with sediment trap
Connections 110, 160, 200, 250 mm

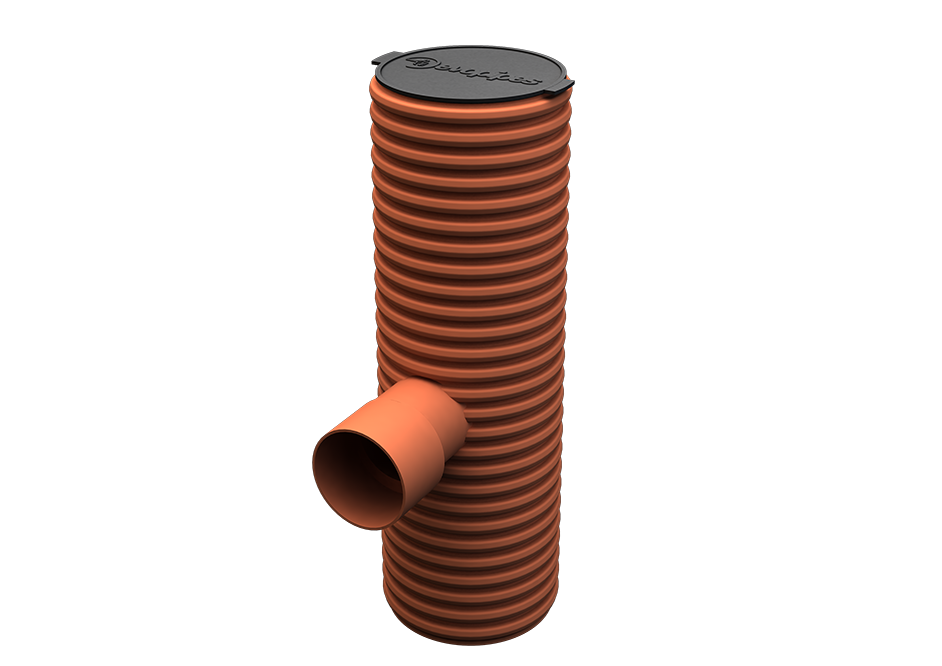

The drainage chamber CID (chamber of inspection for drainage) DN/OD 400 mm with sediment trap and plastic cover for installation outside traffic load impact zones, for example in green areas (courtyards, parks, etc.).
- Connections can be made at angles: 0°.. 270°
- Connection DN/OD 110 .. 250 [mm]
- Sediment trap volume*: 38 [dm³]
*by default, on request it is possible order different sediment trap volumes (or chambers without one at all)
-
Advantages
Long service life (>50 years)
Flexible for movements in soil (no cracking of the chamber)
Water-tightness
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick CCTV control and maintenance of sewerage networks
-
Recommended application
Places outside traffic load impact zones, for example in green areas (courtyards, parks, etc.)
In agriculture, forestry, in parks, squares and peat fields
Stadiums and sport complexes
Landfills (liquid and biogas collection)
-
Chamber components
Type: with one inlet DN1
OUT 0° / IN 90° (DN 110-250)
Additional IN 90° - 270°
DN 110/160/200
Type: with two inlets DN1, DN2
OUT 0° / IN 90° and IN 270° (DN 110-250)
Additional IN 90° - 270°
DN 110/160/200
Type: with three inlets DN1, DN2, DN3
OUT 0° / IN 90°, IN 180°, IN 270° (DN 110-200)
Additional IN 90° - 270°
DN 110/160
-
Technical information
Installation depth:
-
Minimum instalation depth: 1.0 [m]
-
Maximum installation depth is up to 5.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 4.0 [m], according to the requirements of EN 13598-2 standard.
Chamber cover:
-
Round plastic cover, stationary type, polypropylene (PP), DN 400 [mm], corresponds to the requirements of EN 13476-3 and EN 124-6 standard
Chamber shaft and base:
-
Height-adjustment corrugated PP double-wall shaft DN/OD 400 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
-
Polypropylene (PP) base of chamber, type CR-CT, DN 400 [mm] correspond to the requirements of EN 13476-3 standard
How to create additional connections:
Legend:1 - hole saw
2 - chamber shaft connection seal
3 - socket adapter/chamber connection
4 - sealing ring
-
-
