DN 1000.625 Enerģijas dzēšanas aka
Sadzīves kanalizācijai un lietus notekūdeņiem
Ievads: DN/OD 160-355 mm; Izvads: DN/OD 200, 250, 315, 400 mm

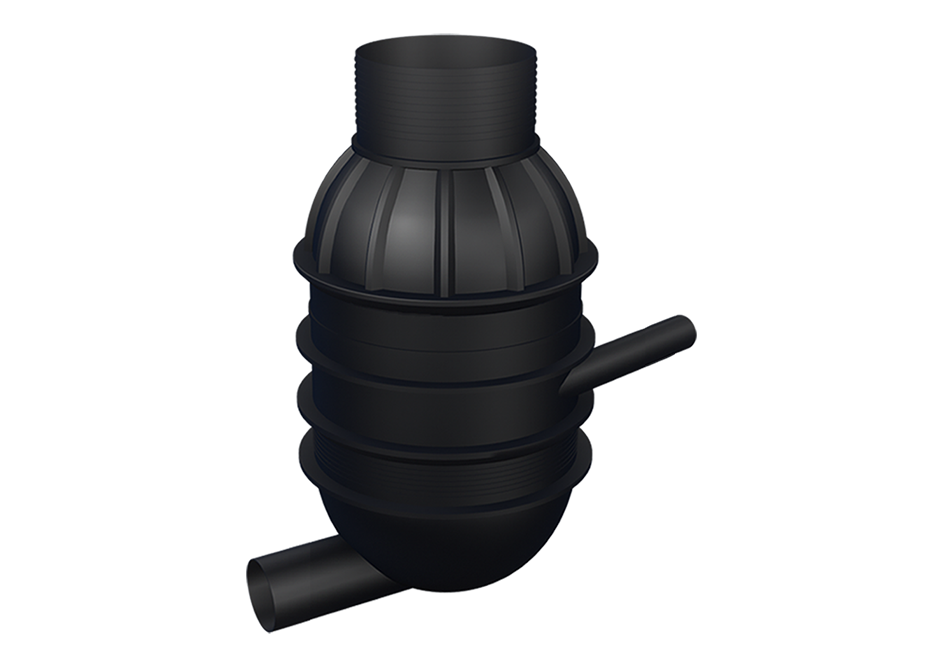

Polyethylene (PE) energy-absorbing chamber DN 1000 mm, with access hole DN 625 mm
-
Advantages
No stagnant water in the chamber
Resistant to aggressive environment, no corrosion
Long service life (>50 years)
Flexibile for movements in soil (no cracking of the manhole)
Water-tightness > 0.5 bar, watertight materials
The diameter of access hole allows convenient and quick maintenance of sewerage networks
-
Chamber components
- OUT 0° DN 200 - IN R/L° DN 160
- OUT 0° DN 250 - IN R/L° DN 180, 200
- OUT 0° DN 315 - IN R/L° DN 225, 250, 280
- OUT 0° DN 400 - IN R/L° DN 315, 355
Note: On demand it is possible to manufacture inlet “IN(R/L)°” with flange connection
-
Recommended application
- Waste water networks
- Rain water systems
-
Technical information
-
Minimum instalation depth: 1.20 m
-
Maximum installation depth is up to 6.0 m, if the ground water level is 2.0 m from the surface. If the ground water level is 0.0 m from the surface, the maximum installation depth is 5.0 m, according to the requirements of EN 13598-2 standard.
-
Stationary type cast iron frame and cover, DN 600/746 mm, installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard
-
Self-leveling type cast iron frame and cover, DN 700 mm, installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard
-
Cast iron shell ring adapter corresponds to the requirements of EN 124-2 standard
-
Reinforced concrete height adjustmet ring, DN 665/1000 mm, corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard
-
Reinforced concrete support ring, DN 665/1060 mm, corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard
-
Polyethylene (PE) chamber shaft, h=500/1000 mm, corresponds to the requirements of EN 14802
-
Polyethylene (PE) chamber base, h=700/1000 mm, corresponds to the requirements of EN 13598-2, EN 476
-
To ensure the water-tightness of the chamber, the folding elements are connected with rubber sealing rings DN 1000 mm corresponding to the requirements of EN 681-1 and EN 1277 standards. The chamber must ensure the maximum pressure of 0.5 bar. According to the requirements of EN 681-1 and EN 1277 standards, rubber sealing rings of chambers have to ensure water-tightness of connections at water pressure of 0.5 bar
-
Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)
-
| Product | Code | |
|---|---|---|
| Chamber covers | ||
 |
Self-leveling round cast iron frame and cover DN 700 mm | on request |
 |
Stationary type round cast iron frame and cover DN 600/746 mm | on request |
| Odour filter selection | ||
 |
Sewer air odour filter | 820230000000000000 |
| Shell ring adapter | ||
 |
Cast iron shell ring adapter | 820215601ST7300038 |
| Conrete components | ||
 |
Reinforced conrete support ring, DN 665/1060 mm, h=160 mm | 821072666850000000 |
 |
Reinforced conrete height adjustment ring, DN 665/1000 mm, h=60 mm | 821073T09840000000 |
| Cone selection | ||
 |
Ring type cone, h=750 mm, DN 1000/625 mm | 817091106440000134 |
| Ring type cone, h=1000 mm, DN 1000/625 mm | on request | |
| Shaft selection | ||
 |
Polyethylene (PE) well ring, h=500 mm | 817024000400000134 |
| Polyethylene (PE) well ring, h=1000 mm | on request | |
| Sealing ring | ||
.png) |
Sealing ring, DN 1000 mm | 817026T01000000034 |
| Chamber base selection | ||
 |
PE Spherical energy-absorbing chamber base DN 1000 mm, h=1000 mm | 817054000460000134 |
| PE Spherical energy-absorbing chamber base DN 1000 mm, h=700 mm | on request | |
Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
