DN 625 Enerģijas dzēšanas aka

Sadzīves kanalizācijai un lietus notekūdeņiem

Ievads: DN/OD 50-160 mm; Izvads: DN/OD 160, 200 mm
DN 625 Enerģijas dzēšanas aka

Polyethylene (PE) energy-absorbing chamber with access hole DN 625 mm

  • Advantages

    No stagnant water in the chamber

    Resistant to aggressive environment, no corrosion

    Long service life (>50 years)

    Flexibile for movements in soil (no cracking of the manhole)

    Water-tightness > 0.5 bar, watertight materials

    The diameter of access hole allows convenient and quick maintenance of sewerage networks

  • Chamber components

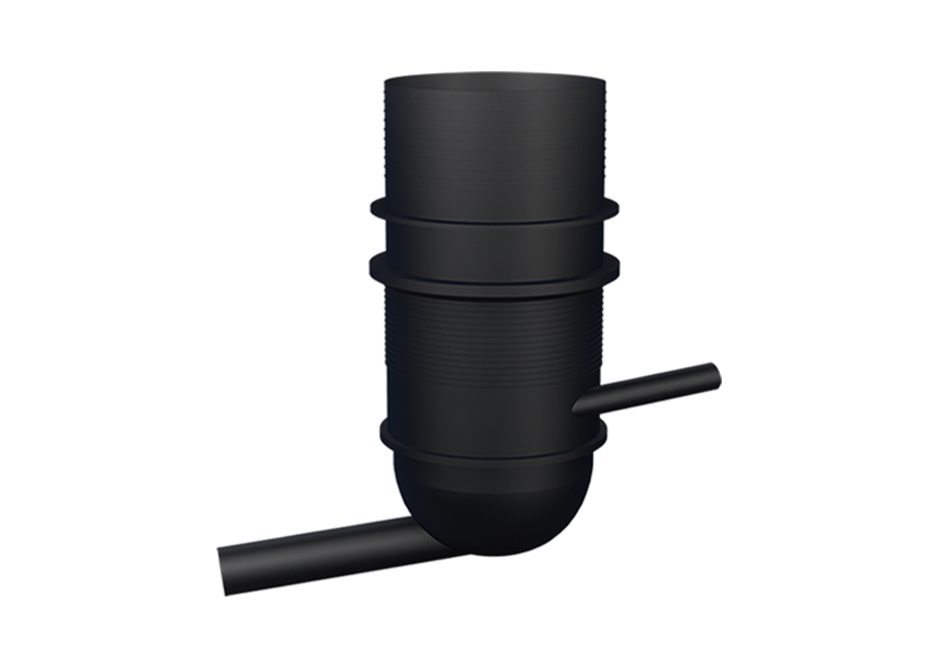

    DN 625 Enerģijas dzēšanas aka



    1. OUT 0° DN 160 - IN R/L° DN 50, 63, 75, 90, 110
    2. OUT 0° DN 200 -  IN R/L° DN 125, 140, 160

    Note: On demand it is possible to manufacture inlet “IN(R/L)°” with flange connection

  • Recommended application
    • Waste water networks
    • Rain water systems
  • Technical information
    • Minimum instalation depth: 1.0 m

    • Maximum installation depth is up to 5.0 m, if the ground water level is 2.0 m from the surface. If the ground water level is 0.0 m from the surface, the maximum installation depth is 4.0 m, according to the requirements of EN 13598-2 standard.

    • Stationary type cast iron frame and cover, DN 600/746 mm, installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard

    • Self-leveling type cast iron frame and cover, DN 700 mm, installation class D400 (40t) corresponds to the requirements of EN 124-2 and RAL GZ-692 standard

    • Cast iron shell ring adapter corresponds to the requirements of EN 124-2 standard

    • Reinforced concrete height adjustmet ring, DN 665/1000 mm, corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard

    • Reinforced concrete support ring, DN 665/1060 mm, corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard

    • Polyethylene (PE) chamber shaft, h=400/900 mm, corresponds to the requirements of EN 14802

    • Polyethylene (PE) chamber base, h=900 mm, corresponds to the requirements of EN 13598-2, EN 476

    • To ensure the water-tightness of the chamber, the folding elements are connected with rubber sealing rings DN 625 mm corresponding to the requirements of EN 681-1 and EN 1277 standards. The chamber must ensure the maximum pressure of 0.5 bar. According to the requirements of EN 681-1 and EN 1277 standards, rubber sealing rings of chambers have to ensure water-tightness of connections at water pressure of 0.5 bar

    • Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)

  Product Code
  Chamber covers
Self-leveling round cast iron frame and cover with ventilation openings DN 700 mm on request
Stationary type round cast iron frame and cover with ventilation openings DN 600/746 mm on request
  Odour filter selection
Sewer air odour filter 820230000000000000
  Shell ring adapter
Cast iron shell ring adapter for self-leveling cover 820215601ST7300038
  Conrete components
Reinforced conrete support ring, DN 665/1060 mm, h=160 mm 821072666850000000
Reinforced conrete height adjustment ring, DN 665/1000 mm, h=60 mm 821073T09840000000
  Shaft selection
Polyethylene (PE) well ring, h=400 mm 815024625390000134
Polyethylene (PE) well ring, h=600 mm on request
Polyethylene (PE) well ring, h=900 mm 815024625450000134
  Sealing ring
Sealing ring, DN 625 mm 815026625000000000
  Chamber base selection
PE Spherical energy-absorbing chamber base DN 625 mm 815054625450000134

Product pictures are provided for informative purposes only. Proportions and colours of the original production may differ from the pictures
